Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption

Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption

Ονομασία μάρκας: LIGHTBO

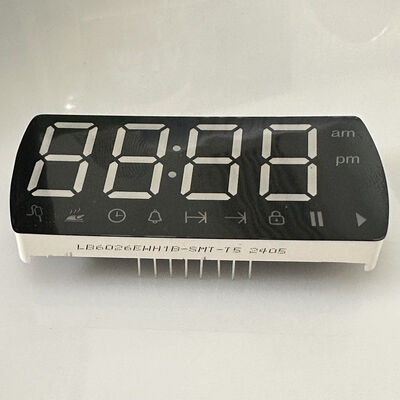

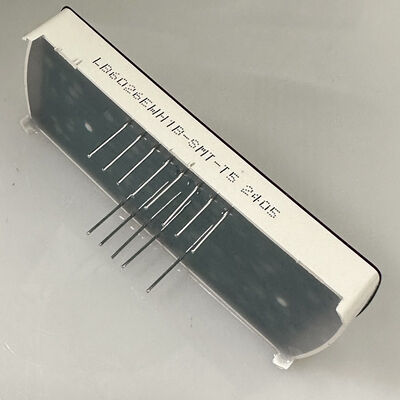

Αριθμός μοντέλου: LB6026EWH1B-SMT-T5
Τροποποιημένο: 1000
τιμή: Negotiate
Όροι πληρωμής: TT, Western Union
Ικανότητα εφοδιασμού: 50000 τμχ/ημέρα
Λεπτομέρειες
Τόπος καταγωγής:
Shenzhen, Κίνα
Πιστοποίηση:
ISO9001&ROHS
Πόλωση:
Κοινή άνοδος
Pixels:
10mm,6mm,8mm,2,5mm, Αρ
Διάσταση οθόνης:
Προσαρμοσμένο μέγεθος, 496x496 mm, 40,5 * 16,0 mm, Custom Made, μήκος 50 cm
Χρώμα τσιπ σωλήνα:
Πλήρες χρώμα, Κόκκινο, Πράσινο, Μπλε, Προσαρμοσμένο χρώμα
Χρήση:
Εσωτερικός, Εξωτερικός, Ημιυπαίθριος, Πάγκος, Πλυντήριο ρούχων
Λειτουργία εμφάνισης:
Βίντεο, Γραφικά, Κινούμενα Σχέδια, Εικόνα, Εικόνα
Εγγύηση:
2 ετών, 3 ετών, 5 ετών, 2-3 ετών, δύο ετών
Όνομα προϊόντος:
P5 Εσωτερική οθόνη LED, HQ-CP50 ψηφία Led Αριθμητική οθόνη, αγορά ρολογιού αντίστροφης μέτρησης, Πίν
Λάμψη:
5000 cd/sqm, 6000 cd/m2, 400-1000 cd/sqm, υψηλή φωτεινότητα, 1800 CD
Διάρκεια ζωής:
100.000 ώρες, 100.000 ώρες, 000 ώρες
Μέγεθος ενότητας:
160x160 mm, 320 mm * 160 mm, 288 * 120 mm, 576 mm * 576 mm, 512 * 512 mm
LED CHIP:
Epistar,Nation star,Sanan,Cree + Nichia + Epistar + Opto + Silan
Χρώμα:
Ολόχρωμο, 1R1G1B, Προσαρμοσμένο
Μέγεθος ντουλαπιού:
496x496x62mm,500mm x 500mm,512*5120mm,500*500mm,Προσαρμοσμένο
Pixel Pitch:
Ενοικιαζόμενη οθόνη led 6mm, P3,91mm P4,81mm, 4,2,5mm
Εφαρμογή:
Πάνελ εξωτερικής / εσωτερικής διαφήμισης, Εσωτερική, Υπαίθρια διαφήμιση Led, Οικιακή συσκευή/μετρητή
Πυκνότητα εικονοστοιχείων:
27777 κουκκίδες/μ2,65536,16000 κουκκίδες/τμ
Είδος:
Πλήρης έγχρωμη οθόνη led ευέλικτη, Anode 0,56 ιντσών προσαρμοσμένη οθόνη led, οθόνη led 4 ψηφίων
Τροφοδοτικό:
G-energy, CL, AC ισχύς ή 12V DC, MeanWell ή ίδιας ποιότητας μάρκα, MeanWell
Υλικό ντουλαπιού:
σίδηρος, Χυτό αλουμίνιο, μαγνήσιο & κράμα αλουμινίου
Συσκευασία λεπτομέρειες:
EPE+Χαρτοκιβώτιο
Δυνατότητα προσφοράς:
50000 τμχ/ημέρα
Περιγραφή του προϊόντος

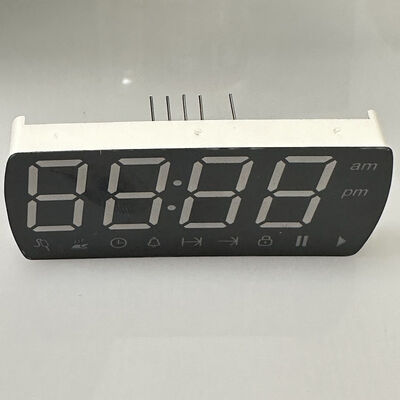

Custom Ultra Bright 4 Digit LED Display for Ovens

Custom LED display technology providing energy brightness control and easy installation for commercial and public spaces.

Product Features
  • Forward voltage (high luminous intensity output)
  • Low power consumption
  • Extremely low current
  • Luminous evenly distributed on each segment
  • Industrial standard size
  • Provides excellent reliability in bright ambient light
  • Stable performance
  • Long lifetime
  • Meet RoHS/REACH compliant
Applications
  • Audio equipment or instrument panels
  • Home electronic appliances
  • Numeric displays
  • Multimedia products
  • General use for digital indicators, temperature indicators, humidity indicators, process indicators, and more
Technical Specifications
Absolute Maximum Ratings (Ta=25ºC)
Parameter Symbol Ratings Unit
Forward Current (per dice) Ipm 20 mA
Reverse Voltage (per dice) Vr 5 V
Power Dissipation (per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ºC
Storage Temperature Range Tstg -40~+85 ºC
Solder Temperature (≤3 seconds) Th 260 ºC
Electrical & Optical Characteristics
Yellow Green - J
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 30 - 40 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 569 - 574 nm
Amber/Yellow - Y
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.5 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 585 - 595 nm
Orange - F
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.4 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 60 - 80 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 600 - 605 nm
Super Bright Red - R
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 50 - 60 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 630 - 635 nm
Ultra Bright Red - UR
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 1.8 - 2.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 80 - 100 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 625 - 635 nm
Pure Green - G
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.6 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 180 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 515 - 525 nm
Ultra Bright Blue - BH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
Spectrum Width Of Half Value △λ If=10mA - 20 - nm
Wavelength If=10mA 460 - 465 nm
Ultra Bright White - WH
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=10mA 2.8 - 3.2 V
Reverse Voltage Vr Ir=10uA 5 - - V
Luminous Intensity Iv If=10mA 120 - 140 mcd
LED color Temperature K If=10mA 5500 20 6800 K
Chromaticity Coordinates X/Y If=10mA 0.29,0.32 - 0.30,0.33 nm
Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

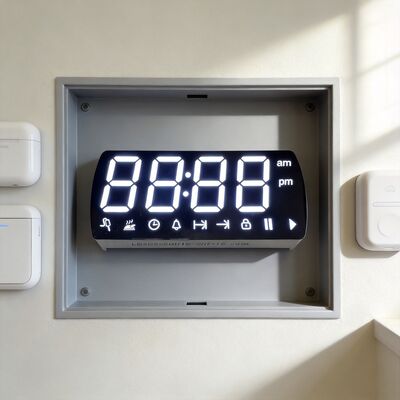

Product Applications
Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 0

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications
Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 1
Office and Factory Overview
Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 2 Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 3 Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 4 Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 5
Company Exhibitions
Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 6 Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 7
Shipping Services
Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 8 Ultra Bright Customized Size 7 Segment LED Display with Low Power Consumption 9
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.
Q2: What are your main products?
Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.
Q3: What is your MOQ?
Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.
Q4: Can I get samples for testing before placing an order?
Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.
Q5: How long is your delivery time?
Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.
Q6: What are your payment terms?
We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you provide FOB prices?
Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
Please provide your email address or contact us directly through our website.
Q9: Can I negotiate prices?
Yes, we offer discounts for bulk orders.
Q10: How much are shipping charges?
Shipping costs depend on shipment size and method. We provide quotes upon request.
Q11: Do you offer custom design services?
Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: Will you keep my custom design confidential?
Yes, we will not share or sell your design to others without authorization.
Q13: What is the lead time for customized product samples?
Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.
Q14: What shipping methods do you use?
We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
